My house has an old GE/Jasco Bluetooth switch setup in a 3-way configuration. That uses 2 different kinds of switches. One is referred to as the primary and one is called an add-on. They have different numbers of terminals. I'm trying to replace these with 2 TP-Link HS210 units purchased in a 2 switch kit. Since the GE installation was done by an electrician I don't know what the old dumb switch wiring looked like.
This is a photo of a TP-Link HS210.
The first HS210 installed pretty easily as everything matched up with the old primary switch. I'm having a devil of a time getting the second one wired correctly, though. I was hoping that someone more knowledgeable than I could provide some insight. Even if I need to call in an electrician, though, I'm going to need some kind of instructions other than those provided by the TP-Link app for the guy to work from.
Here's where things stand.
Here a picture of the terminals on the GE primary switch from the installation guide. It's important to note that this same switch can be used as a single pole or a 3-way switch. What makes a difference is the presence of an add-on switch connected via a single traveler. No traveler and the switch behaves as a single pole.

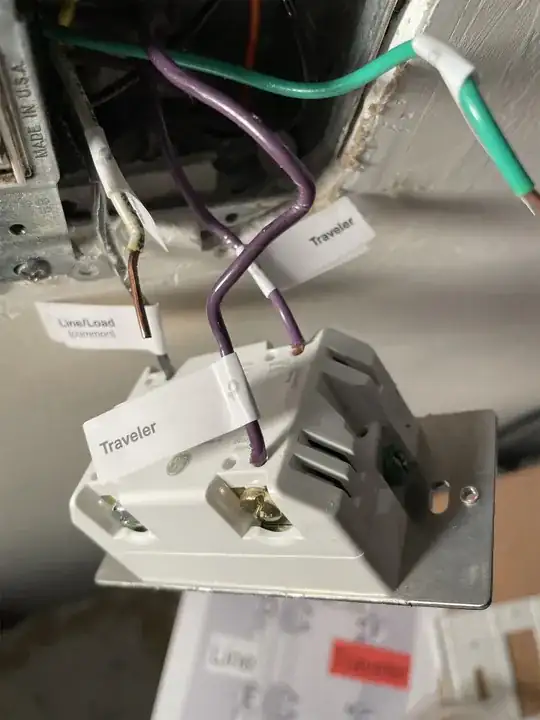

The actual switch had a black wire connected to the Line terminal and purple wires connected to the Load and Traveler terminals.
I transferred the wires to the appropriate terminals on one of the HS210s. That was pretty straightforward. It's the secondary switch that's giving me a problem.
That GE add-on switch only has 3 terminals. This picture is from the installation guide.

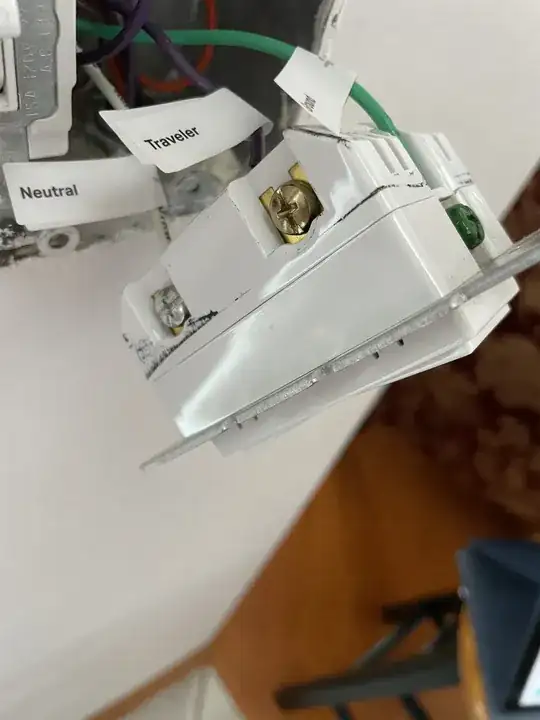

This is a photo of the actual switch.
There's only 1 traveler. That doesn't give me enough wires for the HS210, but I connected the single purple to one of the HS210's traveler terminals and turned on the breaker.
The HS210 that replaced the GE primary switch turns the lights on and off just fine. When the lights go on, though, it appears that there's no power flowing to the HS210 that replaced the GE add-on as the status lights on the switch go out. When I turn the lights off using the same switch that turned them on, the status lights on the second switch come back on. The second switch can't turn on the lights if those are off and it can't turn off the lights that were turned on at the other switch.
There's one more thing that might be important. Digging into the box I see another purple wire that's connected via a wire nut to 2 orange wires (one is just orange and the other is orange with some black dashes). I didn't see any orange wires on the other end. Based on some research concerning the GE configuration, though, it seems that the orange wires may represent the load. Since this circuit controls carriage lights on my garage and can lights on my front porch that could explain 2 slightly different oranges.
I was able to find this about the wiring of a GE primary and an add-on in a 3-way configuration.
This at least suggests that the orange wires could represent the load. What I don't know is how they would have been connected to the original, pre-GE dumb switch. Maybe there was a jumper from the 2 wire bundle to the switch. I just don't know.
I'm obviously missing something here, but I don't know what. I'd appreciate any assistance that anyone may be able to offer.
