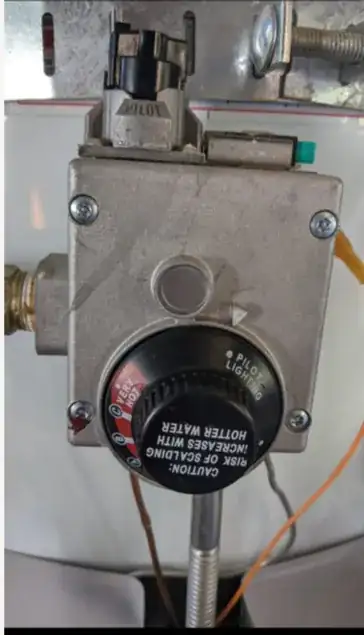

I'm having problems get my water heater to heat. The first thing, I imagine, is to make sure the pilot light is lit. I've tried a few times, but no luck. It doesn't help that I can't see the pilot light. The instructions say there's a glass port where you can see it. If there is one, it's covered by this plate that has anti-tamper screws. Is it safe to remove these and see the pilot light?

enter image description here

enter image description here

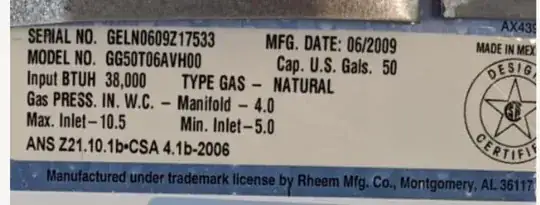

Seems to be a GG50T06AVH00 from GE: https://www.geappliances.com/appliance/GE-Gas-Water-Heater-GG50T06AVH00

enter image description here

user48956
  • 389
  • 2
  • 4
  • 12
  • 3
    Pretty sure removing *that* cover (on the gas control valve/thermostat) is the *wrong* thing to do. Suspect you might be misinterpreting where to look, (the pilot is usually much further inside the heater, near the main burner) but you have not shared the make & model of your water heater. – Ecnerwal Jun 29 '23 at 18:00
  • 3
    The pilot light NOT being inside this box is strongly supported by the igniter and thermocouple wires leading down and in. Follow them. Or [edit] to share the make and model and someone else can point out from the manual where you should be looking. That appears to be below this and deeper inside. – Ecnerwal Jun 29 '23 at 18:12
  • Thanks. I've uploaded that, and the instructions which describe the 'sight glass' and 'inner door' and 'outer door'. – user48956 Jun 29 '23 at 18:20

1 Answers1

5

enter image description here

The "outer door" is below the "thermostatic gas valve." Labeled "jacket door" in this diagram from earlier in the manual. Take that off and have a look for the pilot assembly. Do NOT disassemble the "thermostatic gas valve."

The "inner door" and its sight glass will be located INSIDE the "outer door" - NOT out in the open on the face of the "thermostatic gas valve." As is clearly noted, you should not attempt to remove the "inner door", either.

enter image description here

Images are from the manual found at the web page (now) linked in the question.

Ecnerwal
  • 201,085
  • 10
  • 245
  • 533
  • Many thanks. It would have been nice to have that picture with the lighting instructions, or have it refer to "cover plate" as the 'jacket door" shown in the diagram. There's no problem lighting with the pilot but it won't stay on after 5-10 minutes (goes out when switching from pilot mode to on). Guess I need a technician. It 14 years old. I imagine they're recommend replacement. – user48956 Jun 30 '23 at 21:40
